Paint Test Equipment X1003 Standard Hydraulic Pull Off Adhesion Tester with Certificate, Range 0-3500 PSI (0-25 MPa)



Price: $ 1,650.00

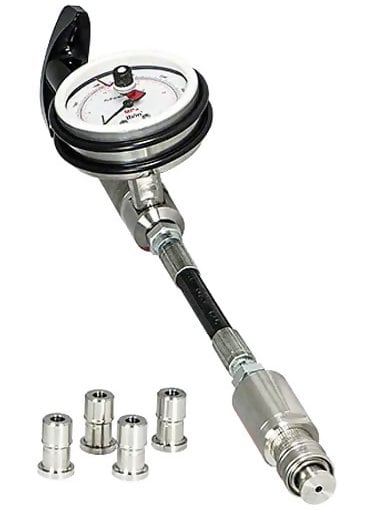

Paint Test Equipment Hydraulic Pull Off Adhesion Tester
The Adhesion Tester is compliant to ISO 4624 and ISO 16276-1.
Gauge accuracy 1%FSD.

Adhesion Tester will measure the adhesion bond strength of applied coatings.

Adhesion Tester is supplied in an industrial Carrying Case with 5 Flat Dollies, Turbo Fuse Adhesive, Heated Dolly Remover, Dolly Cleaning Tool, Dolly Plug.The Adhesion Tester Calibration Certificate with traceability to UKAS is an optional extra.

The Adhesion Tester is compliant to ISO 4624 and ISO 16276-1.

Also known as Pull-Off Adhesion Tester, Hydraulic Adhesion Tester and HATE Adhesion Tester.


line
Features
line

The adhesion is measured by the tensile pull on a Dolly glued to the coating surface.The force is applied through the centre of the Dolly by a hydraulically loaded pin.This ensures an exactly central point-loading of the force.

The maximum value achieved at pull-off is recorded by a reset needle that is easily read on the large scale of the pressure gauge.

The Right Angle version of the Adhesion Tester enables the user to test the adhesion of coatings inside pipes with a minimum diameter of 150mm (6).

Gauge accuracy 1%FSD.


line
Downloads
line

Paint Test Equipment HATE Hydraulic Pull Off Adhesion Tester - Instrutions Manual

Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Paint Test Equipment X1003 Standard Hydraulic Pull Off Adhesion Tester with Certificate, Range 0-3500 PSI (0-25 MPa) $1,650.00
Accessories Price
XA101 Flat Dolly for X1003/X1004 $32.50
XA102 Adhesive Tube $50.00
XA218 Convex Dolly for X1003/X1004, 305mm / 12 in $50.00
XA219 Convex Dolly for X1003/X1004, 356mm / 14 in $50.00
XA220 Convex Dolly for X1003/X1004, 406mm / 16 in $50.00
XA221 Convex Dolly for X1003/X1004, 457mm / 18 in $50.00
XA222 Convex Dolly for X1003/X1004, 508mm / 20 in $50.00
XA223 Convex Dolly for X1003/X1004, 610mm / 24 in $50.00
XA224 Convex Dolly for X1003/X1004, 762mm / 30 in $50.00
XA215 Convex Dolly for X1004, 152mm / 6 in $50.00
XA217 Convex Dolly for X1004, 254mm / 10 in $50.00
XA102 Adhesive Tube $50.00
XA201 Concave Dolly for X1003/X1004, 51mm / 2 in $50.00
XA202 Concave Dolly for X1003/X1004, 76mm / 3 in $50.00
XA203 Concave Dolly for X1003/X1004, 102mm / 4 in $50.00
XA204 Concave Dolly for X1003/X1004, 152mm / 6 in $50.00
XA205 Concave Dolly for X1003/X1004, 203mm / 8 in $50.00
XA206 Concave Dolly for X1003/X1004, 254mm / 10 in $50.00
XA207 Concave Dolly for X1003/X1004, 305mm / 12 in $50.00
XA208 Concave Dolly for X1003/X1004, 356mm / 14 in $50.00
XA209 Concave Dolly for X1003/X1004, 406mm / 16 in $50.00
XA210 Concave Dolly for X1003/X1004, 457mm / 18 in $50.00
XA211 Concave Dolly for X1003/X1004, 508mm / 20 in $50.00
XA212 Concave Dolly for X1003/X1004, 610mm / 24 in $50.00
XA213 Concave Dolly for X1003/X1004, 762mm / 30 in $50.00
XA214 Concave Dolly for X1003/X1004, 914mm / 36 in $50.00
XA102 Adhesive Tube $50.00
Paint Test Equipment NX001 Adhesion Tester Calibration Certificate $35.00
