Adhesion Testers | Buy DeFelsko ATM50C PosiTest AT-M Manual Pull-off Adhesion Tester with 50mm Dollies C1583 Kit ATM50C-B, for Concrete Surfaces & Overlays, Range 0.4 - 3.5 MPa / 50

Typical Applications: Concrete Surfaces & Overlays

Range: 0.4 - 3.5 MPa / 50 - 480 psi

Conforms with ASTM D4541 / D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12

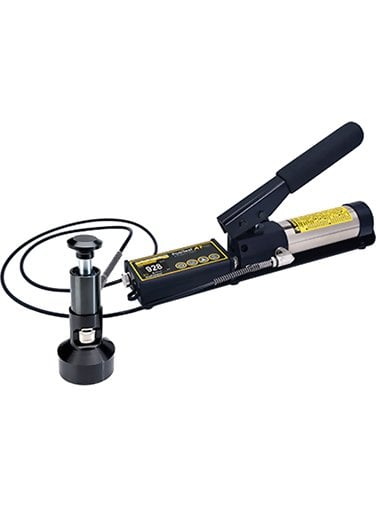

The DeFelsko AT-M PosiTest AT-M Manual Pull Off Adhesion Tester with 50mm C1583 Kit measures adhesion of coatings to metal, wood, concrete and other substrates - Revolutionary self-alignment feature and pull rate indicator brings new meaning to adhesion measurements. A manual hydraulic pump is designed to apply smooth and continuous pressure with a single stroke.

The DeFelsko ATM50C PosiTest AT-M Manual Pull Off Adhesion Tester with 50mm C1583 Kit features an environmentally sealed enclosure. It is weatherproof, dust proof and shockproof. Meeting or exceeding IP65 rating.

Kit Contents

The DeFelsko ATM50C (ASTM C1583 and EN 1542) PosiTest AT-M Adhesion Tester 50mm C1583 Kit includes everything needed for testing:

PosiTest AT-M Manual Pull-Off Adhesion Tester
Built-in rechargeable NiMH battery with charger
C1583 stand-off (NOTE: drill required-not included)
50mm C1583 steel dollies (4)
50mm diamond grit cutting tool with arbor
Abrasive pad, cotton swabs, glue with mixing sticks and palettes
PosiSoft Software and USB Cable
Certificate of Calibration traceable to NIST
Sturdy, lightweight carrying case and instruction booklet
Two-year warranty

line
Features
line

Simple

Easily select dolly sizes, change measurement units, or store readings with the touch of a button
Inexpensive, single-use dollies and plates eliminate cleaning for re-use and can be kept as a permanent record
Each kit comes with everything needed for testing

Durable

Environmentally sealed enclosureweatherproof, dustproof and shockproof - meets or exceeds IP65
Hard-shell carrying case included, with optional upgrade to a heavy-duty Pelican case (Automatic models only)
Two year warranty

Accurate

Calibrated and certified to 1% accuracy using a NIST traceable load cell
Certificate of Calibration showing traceability to NIST included
Self-aligning dolly enables accurate measurements on smooth or uneven surfaces
Conforms to national and international standards including ASTM C1583/ D4541/D7234, ISO 4624/16276-1, BS EN 12004-2, AS/NZS 1580.408.5, and others

Versatile

Select from four stand-offs to suit nearly any application
Internal memory stores maximum pull-off pressure, rate of pull, test duration, and dolly size
10 mm, 14 mm, 20 mm, 50 mm, 50 x 50 mm Tile, and 50 mm C1583 dollies maximize capability and measurement resolution across a wide range of bond strengths

Powerful

Sealed USB port for fast, simple connection to a PC
Includes PosiSoft suite of software for viewing and reporting data

PosiTest AT-M Manual

Manual hydraulic pump designed to apply smooth and continuous pressure with a single stroke
Pull Rate Indicator to manually monitor and adjust the rate of pull
Internal memory stores maximum pull-off pressure, rate of pull, test duration and dolly size for up to 200 pulls
Compatible with PosiSoft Desktop for viewing, printing and storing measurement data

Key Features

Manual hydraulic pump designed to apply smooth and continuous pressure with a single stroke
NEW High-contrast, easy to read color display
Environmentally sealed enclosureweatherproof, dustproof and shockproofmeets or exceeds IP65
Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
Pull Rate Indicator to manually monitor and adjust the rate of pull
Internal memory stores maximum pull-off pressure, pull rate, test duration and dolly size for up to 200 pulls
NEW Field replaceable AAA alkaline batteries provide up to 16 hours of testing
10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths

10 mm: 10000 psi (70 MPa)
14 mm: 6000 psi (40 MPa)
20 mm: 3000 psi (20 MPa)

50 mm: 480 psi (3.3 MPa)
50x50 mm: 375 psi (2.585 MPa)

User selectable measurement units: psi (pounds per square inch) or MPa (Megapascal)
Every PosiTest Adhesion Tester is calibrated and certified to 1% accuracy using a NIST traceable load cell
Compatible with PosiSoft Desktop software for viewing, printing and storing measurement data

* Optional 20mm/50mm/50 mm C1583/50 mm Tile Conversion Kits allow each model to be used with alternative dolly sizes. Custom 10 and 14 mm dollies are available for special applications (compatible with 20 mm stand off).

Conforms to international standards including ASTM C1583/D4541/D7234/D7522, ISO 4624/16276-1, EN 1542/12004-2, AS/NZS 1580.408.5 and others

line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

line
FAQ's - Frequently Asked Questions
line

Click to View DeFelsko PosiTest AT Frequently Asked Questions

line
Optional Accessories
line

DeFelsko Dollies for PosiTest AT Adhesion Testers
Loading fixtures, stubs for adhesion testing. Choose from the following sizes and quantities:

Size	Quantity	Order Code
10 mm	10	DOLLY10
14 mm	10	DOLLY14
20 mm	10	DOLLY20
50 mm	4	DOLLY50

line

DeFelsko Dolly Multipacks for PosiTest AT Adhesion Testers
Larger quantity of dollies at a reduced cost. Select from the following multipacks

Size	Quantity	Order Code
10 mm	100	DOLLY10APK100
14 mm	100	DOLLY14APK100
20 mm	100	DOLLY20APK100
50 mm	50	DOLLY50APK50

line

DeFelsko Conversion Kit AT20KIT for PosiTest Adhesion Testers
Order Code: AT20KIT

Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 10, 14 and 20 mm dollies
Ideal for high bond strength finishes such as coatings on metal
Includes 20 mm stand-off, 20 mm hole saw and 20 mm aluminum test dollies (20)

line

DeFelsko Conversion Kit AT50KIT for PosiTest Adhesion Testers
Order Code: AT50KIT

Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 50 mm dollies
Ideal for lower bond strength finishes such as coatingson wood, concrete and plastic
Larger surface area of dolly provides improved low range precision and repeatability
Includes 50 mm stand-off, 50 mm hole saw and 50 mm aluminum test dollies (12)

line

DeFelsko Conversion Kit AT50CKIT for PosiTest Adhesion Testers
Order Code: AT50CKIT

Ideal for measuring the tensile strength of concrete surfaces and concrete repairs and overlay materials
Conforms to ASTM C1583
Includes 50 mm C1583 steel dollies (4), 50 mm diamond grit cutting tool with arbor and 50 mm C1583 stand-off

NOTE: Drill required (not included)

line

DeFelsko Conversion Kit AT50TKIT for PosiTest Adhesion Testers
Order Code: AT50TKIT

Interchangeable standoff allows a PosiTest ATM50 or ATA50 to pull 10, 14 and 20 mm dollies
Ideal for high bond strength finishes such as coatings on metal
Includes 20 mm stand-off, 20 mm hole saw and 20 mm aluminum test dollies (20)
