Pull-Off Adhesion Testers Models

Adhesion testers are necessary to ensure the paint or coating will adhere properly to the substrates to which they are applied. There are three different tests to measure the resistance of paints and coatings from substrates: cross-cut test, scrape adhesion and pull-off test. We offer manual, automatic and hydraulic pull-off adhesion testers and additionally the cross-hatch cutters. The Pull-Off Adhesion Testers measure adhesion of coatings to metal, wood, concrete and other rigid substrates.

Get the best prices and expedited delivery on Pull-Off Adhesion Testers. We offer Cross Hatch Cutters, Pull-Off Magnetic Magnetic Adhesion Testers, Pull-Off Magnetic Magnetic Adhesion Testers, and much more.

For a complete list of features and accessories, please check all our Pull-Off Adhesion Testers models below. If you are having difficulties finding the product you need, feel free to contact us and a product specialist will be happy to assist you.

Cross Hatch Cutter
Cross Hatch Cutter
Price: $395.00
International Standards: ISO 2409, ISO 16276-2 and ASTM D3559

Cross Hatch Cutter Kit - includes foam-filled carrying case, 3x illuminated magnifier and adhesion test tape (50mm)
Allows an assessment to be made of the adhesion resistance of coatings to separation from substrate.
The Cross Hatch Cutter is a precision instrument that allows an assessment to be made of the adhesion resistance of coatings to separation from substrates when a right-angled lattice pattern is cut into the coating and penetrates through to the substrate. The coating thickness determines the Cutter size used. The 1mm Cutter (CHC-1) is suitable for coatings under 60 Microns. The 2mm Cutter (CHC-2) is suitable for coatings over 60 Microns. Simple operation, each Cross Hatch Cutter has 6 cutting blades spaced either 1mm or 2mm apart. Make one cutting pass through to the substrate. This makes 6 cuts in the coating. A second pass at 90 makes a square lattice pattern. Apply Adhesive Tape over the cut lattice section and within 5 minutes remove tape. Classify the cut area with the Viewing Lens according to the relevant national standard classification guide.

Please click on the links below for additional information on the models available for this product:
Models Available Price
X2001 Cross Hatch Cutter Kit with 1mm (40 mils) Blade
395.00
X2002 Cross Hatch Cutter Kit with 2mm (80 mils) Blade
395.00

DeFelsko Dollies for PosiTest AT Adhesion Testers
DeFelsko Dollies for PosiTest AT Adhesion Testers
Price: $35,00 to $350.00
DeFelsko Dollies for PosiTest AT Pull-Off Adhesion Tester
For use with PosiTest AT-A or PosiTest AT-M
Ideal measuring bond strengths up to 3, 500 psi (24 mpa)
Self-aligning spherical dolly head enables consistent measurements on rough and uneven surfaces
The Dolly is an accessory for the Positest AT Pull-Off Adhesion Tester. DeFelsko dollies dollies maximize capability and measurement resolution across a wide range of bond strengths. Genuine, precision-machined DeFelsko dollies for maximum repeatability. Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces.

Please click on the links below for additional information on the models available for this product:
Models Available Price
AT20KIT 20mm Conversion Kit for PosiTest ATM50 or ATA50 Adhesion Testers
250.00
AT50KIT 50mm Conversion Kit for PosiTest ATM20 or ATA20 Adhesion Testers
250.00
DOLLY10 10 mm Dollies for PosiTest AT Adhesion Testers (Pack of 10)
40.00
DOLLY10APK100 10 mm Dollies for PosiTest AT Adhesion Testers (Pack of 100)
350.00
DOLLY14 14 mm Dollies for PosiTest AT Adhesion Testers (Pack of 10)
40.00
DOLLY14APK100 14 mm Dollies for PosiTest AT Adhesion Testers (Pack of 100)
350.00
DOLLY20 20 mm Dollies for PosiTest AT Adhesion Testers (Pack of 10)
25.00
DOLLY20APK100 20 mm Dollies for PosiTest AT Adhesion Testers (Pack of 100)
225.00
DOLLY50 50 mm Dollies for PosiTest AT Adhesion Testers (Pack of 4)
40.00
DOLLY50APK50 50 mm Dollies for PosiTest AT Adhesion Testers (Pack of 50)
450.00
TMPLTAS DeFelsko Drilling Template for 50mm Dollies
140.00

Hydraulic Pull Off Adhesion Tester
Hydraulic Pull Off Adhesion Tester
Price: $1,549.00 to $1,649.00
Hydraulic Pull Off Adhesion Tester
Measures with ease and precision the adhesion bond strength of applied coatings.
Can test the external and internal surfaces of pipes.
Measuring Range: 0-2600 psi (0-18 MPa)
The HATE Adhesion Tester or Pull Off Adhesion Tester is an instrument that measures with ease and precision the adhesion bond strength of applied coatings. This is one of the most accurate and versatile adhesion testers currently available. The adhesion is measured by the tensile pull on a Dolly glued to the coating surface. The force is applied through the center of the Dolly by a hydraulically loaded pin. This ensures an exactly central point loading of the force. Adhesion values are recorded by a pressure gauge giving a 1:1 pressure reading. This is made possible as the net surface area of the Dolly is equal to the surface area of the hydraulic piston bore. Pressure reacted by the Dolly is the same as the pressure in the bore and is transmitted directly to the pressure gauge. The maximum value achieved at pull-off is recorded by a reset needle that is easily read on the large scale of the pressure gauge.

Please click on the links below for additional information on the models available for this product:
Models Available Price
X1003 HATE Standard Hydraulic Pull Off Adhesion Tester with Certificate, Range 0-2600 PSI (0-18 MPa)
1,549.00
X1004 HATE Right Angle Hydraulic Pull Off Adhesion Tester with Certificate, Range 0-2600 PSI (0-18 MPa)
1,649.00

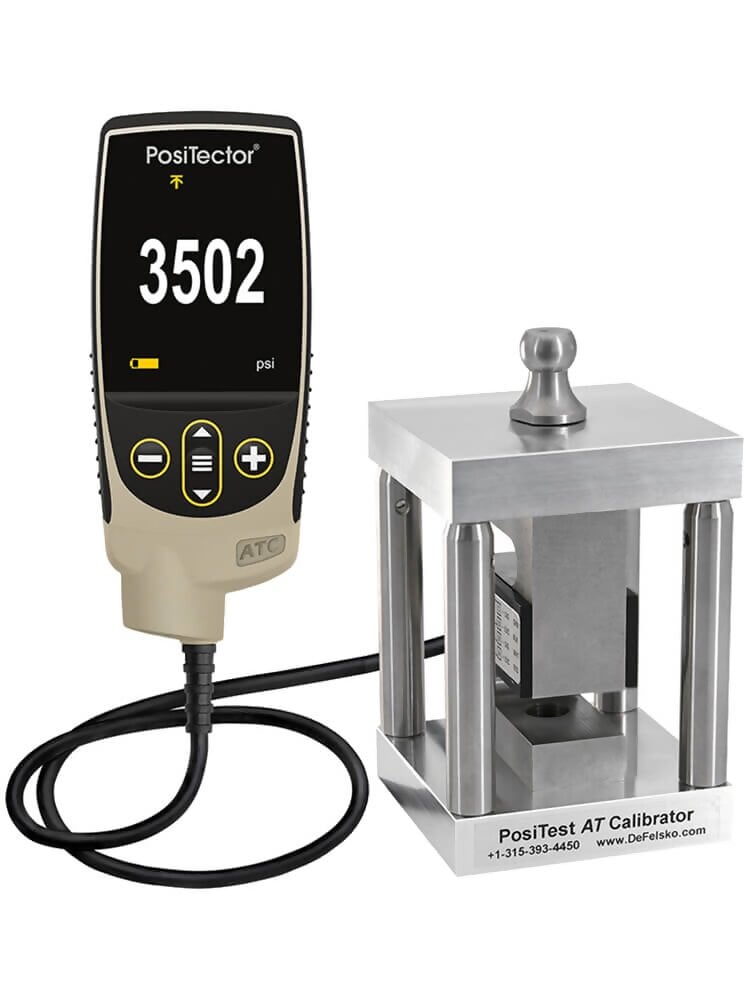

PosiTest AT Verifier
PosiTest AT Verifier
Price:$2,795.00
Range:0 - 5,000 psi
PosiTest AT Verifier Adhesion Tester Accuracy Verification Kit
Manufacturer: DeFelsko
Warranty: One Year
The PosiTest AT Verifier is ideal for checking the accuracy and operation of the PosiTest AT-A and AT-M Adhesion Testers. This instrument is an important component in fulfilling both ISO and in-house quality control requirements. The AT-VERIFY and included documents allow the user to certify the accuracy of our AT-A and AT-M Adhesion Testers.

Please click on the links below for additional information on the models available for this product:
Models Available Price
PosiTest AT Verifier Adhesion Tester Accuracy Verification Kit, 0 - 5,000 psi ATVERIFY
2,795.00

PosiTest AT-A Automatic Pull Off Adhesion Tester
PosiTest AT-A Automatic Pull Off Adhesion Tester
Price: $2,595.00
DeFelsko PosiTest AT-A Automatic Pull-Off Adhesion Tester
Electronically controlled hydraulic pump applies smooth and continuous pull-off pressure at a user-specified rate
Conforms with ASTM D4541 / D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12
The Positest AT-A is ideal to measure the force required to pull a specified test area of coating away from a substrate using hydraulic pressure. An electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. The pump greatly reduces user effort and the risk of influencing the pulling process. The AT-A built-in rechargeable battery performs over 200 tests per charge. The supplied AC adapter / charger allows you to continue testing with AC power while the battery recharges. The AT-A features an environmentally sealed enclosure. It is weatherproof, dust proof and shockproof.

Please click on the links below for additional information on the models available for this product:
Models Available Price
PosiTest ATA20A-B Automatic Pull-Off Adhesion Tester with 20mm Dollies Kit, for Coatings on Metals, Range 0.7 - 24 MPa / 100 - 3500 psi / 100 - 7550 N
2,595.00
PosiTest ATA50A-B Automatic Pull-Off Adhesion Tester with 50mm Dollies Kit, for Coatings on Concrete, Wood and Plastic, Range 0.4 - 3.8 MPa / 50 - 560 psi / 100 - 7550 N
2,595.00
PosiTest ATA50C-B Automatic Pull-Off Adhesion Tester with 50mm Dollies C1583 Kit, for Concrete Surfaces & Overlays, Conforms to ASTM C1583, Range 0.4 - 3.8 MPa / 50 - 560 psi / 100 - 7550 N
2,795.00
PosiTest ATA50T-B Automatic Pull-Off Adhesion Tester with 50x50mm Dollies Tile Kit, for Tile Adhesion Strength, Conforms to BS EN 12004-2, Range 0.4 - 3.033 MPa / 50 - 440 psi / 100 - 7550 N
2,795.00

PosiTest AT-M Manual Pull Off Adhesion Tester
PosiTest AT-M Manual Pull Off Adhesion Tester
Price: $ 1,895.00 up to $ 2,095.00
DeFelsko PosiTest AT-M Manual Pull-Off Adhesion Tester
Measures adhesion of coatings over metal, wood, concrete, plastic and other substrates
Conforms with ASTM D4541 / D7234, ISO 4624, SSPC-CS 23.00/AWS C2.23/NACE No. 12
The AT-M is designed to apply smooth and continuous pressure with a single stroke. This instrument features an environmentally sealed enclosure. It is weatherproof, dust proof and shockproof. Every PosiTest Adhesion Tester pressure system is calibrated and certified to 1% accuracy using a NIST traceable load cell.

Please click on the links below for additional information on the models available for this product:
Models Available Price
PosiTest ATM20A-B Manual Pull-Off Adhesion Tester with 20mm Dollies Kit, for Coatings on Metals, Range 0.7 - 20 MPa / 100 - 3000 psi
1,895.00
PosiTest ATM50A-B Manual Pull-Off Adhesion Tester with 50mm Dollies, for Coatings on Concrete, Wood and Plastic, Range 0.4 - 3.5 MPa / 50 - 480 psi
1,895.00
PosiTest ATM50C Manual Pull-Off Adhesion Tester with 50mm Dollies C1583 Kit, for Concrete Surfaces & Overlays, Conforms to ASTM C1583, Range 0.4 - 3.5 MPa / 50 - 480 psi
2,095.00
PosiTest ATM50T Manual Pull-Off Adhesion Tester with 50x50mm Dollies Tile Kit, for Tile Adhesion Strength, Conforms to BS EN 12004-2, Range 0.4 - 2.585 MPa / 50 - 375 psi
2,095.00
