X2001 Cross Hatch Cutter Kit with 1mm (40 mils) Blade



Price: $ 395.00

Cross Hatch Cutter
International Standards: ISO 2409, ISO 16276-2 and ASTM D3559

Cross Hatch Cutter Kit - includes foam-filled carrying case, 3x illuminated magnifier and adhesion test tape (50mm)
Allows an assessment to be made of the adhesion resistance of coatings to separation from substrate.
Each Cross Hatch Cutter has 6 cutting blades spaced either 1mm or 2mm apart.

The Cross Hatch Cutter allows an assessment to be made of the adhesion resistance of coatings to separation from substrates when a right-angled lattice pattern is cut into the coating and penetrates through to the substrate.

The coating thickness determines the Cutter size used. The 1mm Cutter is suitable for coatings under 60 Microns. The 2mm Cutter is suitable for coatings over 60 Microns.

Simple operation, each Cross Hatch Cutter has 6 cutting blades spaced either 1mm or 2mm apart. Make one cutting pass through to the substrate. This makes 6 cuts in the coating. A second pass at 90 makes a square lattice pattern. Apply Adhesive Tape over the cut lattice section and within 5 minutes remove tape. Classify the cut area with the Viewing Lens according to the relevant national standard classification guide.

Multiple coatings can be tested for the assessment of the resistance to separation of individual layers of the coating from each other.

Precision-ground, hardened tool steel cutting blades with 6 cutting sides, so that when one cutting side becomes blunt there are a further 5 cutting sides to use.

Complies with International Standards: ASTM D3359, ISO 2409 and ISO 16276-2.

Supplied in a Foam-Filled Carrying Case with a 3x Illuminated Magnifier and Adhesion Test Tape (25mm).

line
Complies with International Standards
line

  • ISO2409
  • ISO 16276-2
  • ASTM D3359

line

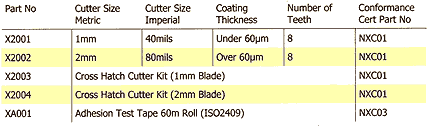

Specifications
line

line
Downloads
line

Cross Hatch Cutter - Data Sheet

lineBuy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
X2001 Cross Hatch Cutter Kit with 1mm (40 mils) Blade $395.00
